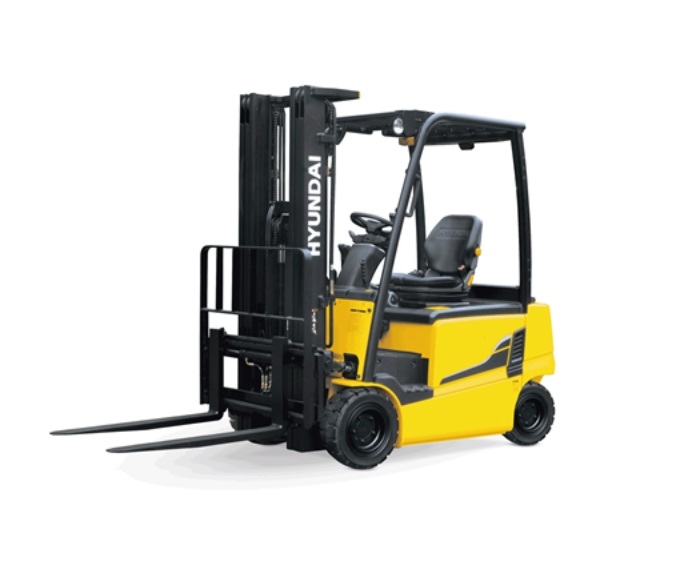

Hyundai 18B-9F
Introduced in 2021, the Hyundai 18B-9F electric forklift is designed for efficiency and manoeuvrability within warehouses and industrial spaces. With a nominal load capacity of 1.8 t and a compact width of 1010 mm, it facilitates easy handling of goods even in confined spaces. The electric forklift boasts a 48 V power system with an 8 kW traction motor and a 12 kW hoist motor, ensuring smooth and precise lifting operations. A relatively light frame of 3.2 t complemented by a battery weight of 1 t allows for a stable base, while the maximum lift height of approximately 3 m and turning radius of 1.8 m provide optimal functionality for various tasks. Notable for its speed and agility, the 18B-9F reaches up to 15 km/h without load, reflecting a blend of power and performance.
Specifications
Load Capacity | 1.8 t |
Lift Height | 3 m |
Turning Radius | 1.8 m |
Weight | 3.2 t |
Dimensions | 1010x2060x500 mm |
Max Speed | 15 km/h |
Powertrain
Power Source | Electric |
Voltage | 48 V |
Battery Weight | 1 t |
Lift Motor Power | 12 kW |
Drive Motor Power | 8 kW |
